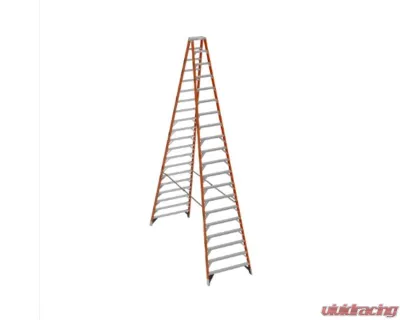

Werner 20' Type IAA Fiberglass Twin Ladder - T7420
The T7420 Fiberglass 20-foot Twin Stepladder features a duty rating of 375 pounds per side of the ladder. Designed for one or two-person jobs, the T7400 series ladders have heavy gauge aluminum tops and feature heavy-duty internal spreaders to resist damage around the worksite or in transit. The GLAS*MARK® Violater stripes on the rails make the ladder more visible and the EDGE® bracing system and external rail shields add to the long lasting durability of these ladders. Fiberglass rails are non-conductive for working near electricity.


Features:
  • Heavy gauge aluminum extruded top with thick side plates
  • Back-up aluminum plates reinforce all top connectors
  • Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each rail
  • Slip-resistant Traction-Tred® steps are double riveted and knee-braced
  • Extra heavy-duty internal aluminum spreaders
  • Rubber step bumpers to resist damage
  • EDGE® bracing system helps to decrease damage to rail
  • GLAS*MARK® Violator stripes on rails allow the ladder to be more visible
  • Aluminum external rail shield helps protect against abrasion damage
  • Shoe pads riveted to the EDGE® structure
  • Every rivet backed up by metal, metal plates, or washer to protect rails
  • Design for one or two-person jobs
  • Maximum load per side, including person and materials, shall not exceed duty rating of ladder


Specifications:
  • Style: Twin Step Ladder
  • Size: 20ft
  • Type: Type IAA Duty Rating
  • Load Capacity (lb): 300
  • Material: Fiberglass
  • Certifications: ANSI A14.2-2007,OSHA
  • Werner Benefit: Heavy gauge aluminum extruded top with thick side plates
  • Unique Features: Works Around Electricity
  • Color of Ladder Rail: Orange
  • Color of Ladder Top: Metal
  • Bracing Type: EDGE
  • Edge Bracing: Yes
  • Foot Design: Metal with Rubber Pad
  • Front Flange Dimension (in): 1.18
  • Front Rails Dimension (in): 3.125
  • Max. Load: 300lb
  • User or Factory Installed: User
  • Number of Tool Holes in Ladder Top: 1
  • Number of Top Features: 1
  • Country of Origin: Mexico
Dimensions:
  • Average Reach Height Step Ladder (ft): 24ft
  • Highest Standing Level Step Ladder (ft): 17ft 3in
  • Approx. Product Length (in): 240
  • Approx. Product Width (in): 49.5
  • Approx. Product Height (in): 9
  • Approx. Product Depth (in): 7
  • Approx. Product Weight (lb): 149
  • Approx. Shipping Length (in): 240
  • Approx. Shipping Width (in): 49.5
  • Approx. Shipping Height (in): 7
  • Approx. Shipping Weight (lb): 149
  • Approx. Spread (in): 150.13
  • Approx. Open Length (in): 240
  • Approx. Closed Length (in): 240
  • Top Dimension (in): 8.25in x 14.5in
  • Step / Rung Dimension (in): 3
  • Rear Rails Dimension (in): 3.13
