Whipple 3.0L Stage 1 Kit Ford Bronco | Raptor 2022-2023
$1850.99
Free Shipping
Whipple, known for its industry leading upgrade systems and technological innovations, now offers the first and only performance kit for the 2022+ Ford Bronco Raptor!

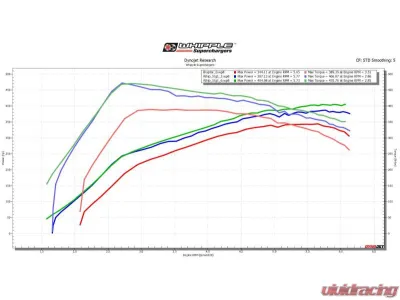

The Whipple stage 1 systems couples the Whipple Mega Cooler and industry leading custom calibration to make up to an amazing 80* foot pounds of torque and 60* horsepower over stock. Even better, from 2000rpm, the systems produces significantly more torque giving more power under the curve for incredible throttle response. The calibration further enhances shift points to better utilize the increased torque, resulting in a much better overall driving experience, while also giving you the ability to change the tire and axle size to fix vehicle issues related to aftermarket tire/wheel changes (max 5.10 gear ratio, 39" tire).

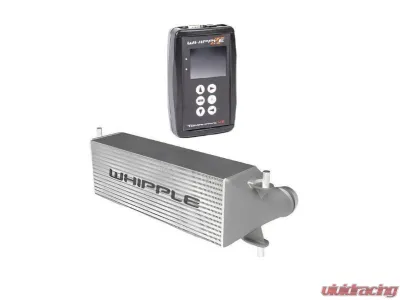

The Stage 1 systems heart and soul is the industry leading calibration. Whipple and it's Ford calibration team worked feverishly using advanced tools to develop a calibration that could maximize power based on 91 octane or higher fuel, while maintaining safety for everyday driving conditions. Whether your cruising, off-roading, towing or just like to burn the tires, the Whipple cal is designed for all applications. The kit also features revised pedal mapping, increased speed limit, updated shift points, updated shift schedule and deactivate the annoying auto start/stop feature. Each drive mode is maintained, leaving you all the potential options your Bronco was equipped with. The Whipple Tomahawk flash tool allows easy uploading and downloading of the Whipple files while also offering the ability to read/erase trouble codes, live data viewing and advanced data logging capacity.

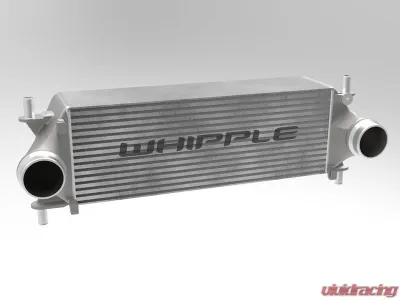

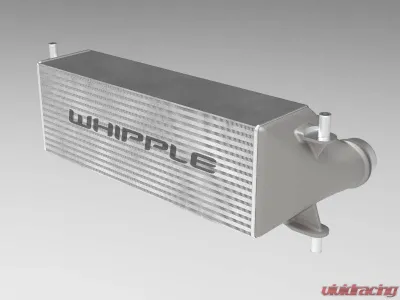

The Whipple Mega Cooler offers 58% greater internal core volume, 144% increase in external fin surface and 12% less restrictive than stock intercooler core. The robust, TIG welded bar and plate intercooler features offset fin on both the cold and hot side, allowing for increased cooling capacity while fitting into the stock packaging. Test show an amazing 32 degree (F) drop in temperature just on the dyno during back-to-back runs, yet even bigger gains are shown during real world applications. The colder air allows increased spark advance and more O2 to the engine, resulting in more consistent power while maintaining safety.

50-State Legal

Install Instructions: CLICK HERE!



Features:

  • Up to 80TRQ/60HP* peak gain over stock using 93 octane.
  • Works with new locked PCM.
  • 58% greater internal core volume.
  • 144% increase in external fin surface.
  • 12% less restrictive intercooler.
  • Up to 32deg F drop in discharge temp.
  • Annoying Auto start/stop removed.
  • Compatible with future Over The Air updates.
  • Increased RPM range with higher shift points.
  • Refined pedal map for increased power under the curve.
  • Refined shift strategy for sporty feel.
  • 135MPH Speed Limit.
  • Tire size and axle calibration capacity included with flash tool.
  • Heavy duty bar-plate designed intercooler.
  • Offset 14FPI on cold airflow side of intercooler.
  • Bolt-on performance, no modifications required.
  • Advanced PCM calibration using factory tools for industry leading drive-ability and performance.
  • 91 or higher-octane fuel compatible.
  • Complete kit


Fitment:
  • Ford Bronco 2022-2023
  • Ford Raptor 2022-2023
Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
2022-2023
Ford Bronco
2022-2023
Ford Raptor

Whipple Superchargers Banner

Who Is Whipple Supercharger?

Whipple Supercharger is a company that was founded in 1987 by Art Whipple and is located in Fresno, California. As a family-owned business, they constantly find ways to thrive with innovative products and commitment to staying ahead of the competition.

They are best known for creating the industry’s best forced induction system and pioneering the twin screw superchargers for the internal combustion engine. Their dedication to providing innovative products has enabled them to be at the forefront of the supercharging industry.

Created By A Legend

The company’s founder Art Whipple is known as an innovator and is an icon in the motorsport industry. Using his experience as a successful racer, chief, and team owner of successful top fuel funny cars and dragsters, they can create the best supercharger in the market. They have achieved multiple speed records and quarter-mile times using their products, making them the go-to brand of many racers and other top racing teams.

Most Trusted Brand

Whipple Superchargers is considered one of the most respected and trusted aftermarket supercharger brands on the market. They are also the brand of choice of two of the best automotive manufacturers globally, Ford And GM.

As the only US-based manufacturer of the twin-supercharger, they ensure that they do not cut corners when manufacturing their products. There are tons of superchargers available in the market. They may look the same, but nothing compares to what Whipple can deliver.

Purchase Whipple Superchargers At Vivid Racing

If you are in the market for quality products that would give you the highest horsepower gain in your engine, then look no further as Whipple Supercharger is the brand for you. They also offer other products, which include intercoolers, cold air intakes, and a power kit.

To know more about Whipple Superchargers, visit Vivid Racing and check out their list of products that fit your specific requirement.
FAQs on Whipple Supercharger
  • How much HP does a Whipple Supercharger add?

The amount of horsepower gain would depend on your current setup such as the type of pulleys, fuel system, exhaust, and internal components that you use. But for a stock engine, adding a Whipple Superchargers can add up between 30% to 50% of the car’s original horsepower output.

  • What is a Whipple Supercharger?

A Whipple Supercharger is one of the three types of superchargers available in the market. The twin-screw design was developed to fill the tremendous voids that the centrifugal, turbo and roots superchargers have. Though their function are all the same, its twin screw design allows it to be less susceptible to suffer from heat stroke. This helps improve its efficiency and reaction time.

  • How to install a Whipple Supercharger?

Installing a Whipple Supercharger is pretty straightforward. It mounts on top of an engine intake system and most kits come with all the necessary hardware needed for the install.

  • How does a Whipple Supercharger work?

The system is operated by a pulley, which is driven by the engine’s pulley drive system. The way Whipple Supercharger works is it uses twin screws to compress air and force it inside the engine. The more air you can put in, the more fuel you can add, which in turn create better and more powerful combustion.

  • How much does a Whipple Supercharger cost?

This depending on the kit and vehicle application. Prices for these superchargers can range between $3000 to $12,000.

  • Are Whipple Superchargers carb legal?

Yes. Whipple Superchargers advertises that they are the most powerful and emission-friendly supercharger available in the market.

  • How long does a Whipple Supercharger last?

These superchargers can last long given that you do proper maintenance and use it based on what the manufacturer has suggested.

  • How much does it cost to install a Whipple Supercharger?

If you are technically inclined in fixing cars, all you have to spend for is the cost of the kit because it is something you can do on your own. But if you will have a professional to do it for, be ready to shell out anywhere between $1500 to $7500.

  • What is the biggest Whipple Supercharger?

The biggest Whipple Supercharger available is an 8.3 liter/rev with an output of 3250 CFM and a peak rev of 12,000 RPM.

  • Where are Wwhipple Superchargers made?

All Whipple Superchargers are made in USA. The only component made outside of the country is its rotor. Whipple Superchargers is already on the works of trying to make everything in their inhouse facility in Fresno, California.

  • Can you change the pulley on Whipple Superchargers?

Yes. It does not require any special tools, and all you need is a simple ratchet.

  • Can you finance a Whipple Supercharger?

Most companies like Vivid Racing offer Performance Part Financing for your vehicle which includes Whipple Superchargers. You can do a fixed, monthly payment with an APR between 10-30%.

  • Can you port a Whipple Supercharger?

Yes, but only to a certain extent and it should only be done by an expert or someone familiar with these types of work.

  • Do Whipple Superchargers heat soak?

Yes, but not as much compared to the other types of superchargers. Whipple Superchargers are designed to be less susceptible to heat soaking but it does not entirely eliminate it.

  • Do Whipple Superchargers whine?

Whipple Superchargers are quieter compared to other types of superchargers. This may be good to some, especially for cars used as a daily driver. But others are looking for that specific whining sound that superchargers are known for.

  • Does Whipple Supercharger void warranty?

For a company to void your warranty, they need to prove that the modification done on the vehicle is the cause of the warranty claim - unless the warranty clause of your vehicle clearly states that adding an aftermarket component would void the warranty. For this, better check your vehicle’s manual for what is included in your warranty.

WHIPPLE INDUSTRIES. INC., LIMITED WARRANTY.Whipple Industries, Inc., warrants that, for a period of one year from the date of purchase, as evidenced by the invoice Date'' on the Purchase Contract,. goods manufactured by Whipple Industries, Inc, shall be free of defects In workmanship and materials. If a Whipple Industries, Inc., product is suspected of being defective, it may be returned only in accordance with the Returns and Exchanges procedures outlined in these materials.
