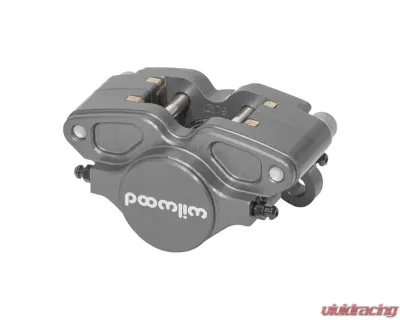

Wilwood 1.25" Pistons .25" Disc Caliper GP200 = 3 | 8-24 inlet - 120-16888
The GP 200 billet caliper represents the newest lightweight (only .90 pounds) caliper specifically designed for tight fit applications while utilizing a standard 2.38" lug mount. Now available (depending on part number) in either 1/8-27 NPT or a 3/8-24 fluid inlets. The GP 200 combines superior strength with a type III hard anodized finish along with several new performance features. The strength of the GP 200 is a combination of process and design. GP 200 calipers are fully CNC machined from premium grade alloy billet. The FEA generated body design incorporates a highly fortified transition between the piston housings and the bridges. Strengthening this critical area of the caliper has substantially increased its resistance to deflection and body separation under load.

Structural deflection and volume displacement testing have proven the efficiency of this innovative design. Reductions in overall deflection, and the subsequent decreases in fluid volume displacement, translate to increased clamping efficiency with less pedal travel. The bottom line is a firm, responsive pedal with outstanding stopping power. The GP 200 uses heavy wall stainless steel pistons to resist corrosion and slow the heat transfer from the pads. The heavy wall sectional thickness improves pedal firmness and adds to the overall clamping efficiency by eliminating piston backside deflection at higher system pressures.

Every GP 200 caliper is also fitted with replaceable stainless steel SRS bridge plates. SRS plates eliminate the bridge wear caused by pad gouging to extend the service life of the caliper body. The spring-loading action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal during engagement. The package is completed with internal fluid passages and four corner bleed screws that allow mounting in any front, rear, left, or right side position.

Features:
  • Piston Count: 2
  • Piston Area (in sq.): 1.23
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 0.25
  • Rotor Diameter(in): 11.00
  • Pad Area (in sq.): 1.83
  • Pad Volume (in cube): 0.34
  • Material: Aluminum
  • Weight(Lbs): 0.9
  • Color: Ano
  • Finish: Type III Ano
  • Mount Center(in): 2.38
  • Mount Side: Universal
  • Mount Type: Lug
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Wilwood Banner

Who is Wilwood?

Willwood Engineering Inc. was formed back in 1977 by Bill Wood. The company is known for manufacturing a high-performance disc brake system.

Throughout the years, the company has continuously improved itself, along with the ever-changing advancement in-vehicle technology.

Today, the company had extended its wheel designs to supply brake components for various vehicles, including agricultural equipment, utility vehicles, motorcycles, four-wheelers, military vehicles, and even snowmobiles.

A Brake for Every Need

Wilwood has an extensive inventory of brakes parts for various vehicles. With over hundreds of brake calipers, master cylinder, and rotor designs, not to mention the tons of brackets, fitting, brake lines, and valves, it has the right kit for every vehicle application you can think of.

Engineered to Perfection

The company entails the most advanced technology and software in designing and manufacturing its products. They use a finite element analysis and multiple testing procedure such as a dynamic and cycle test that helps them replicate real-world conditions and adjust their design accordingly, making the necessary correction even before they manufacture the actual product

Using only the finest materials available, they can create a product that meets its clientele's expectation whether it's for street use or for race application.

Wilwood has also been ISO Certified, making it compliant to all mandated processing procedures set by the regulatory board.

Purchase Wilwood Products at Vivid Racing

Your brakes are the most important component of your car. It is easy to make your car fast, but you have to make sure you can equally make it stop as well.

Wilwood has the right product for you. With safety and quality at its core, they are the product you can surely trust. Visit Vivid Racing and check the list of parts that would fit your specific needs.
