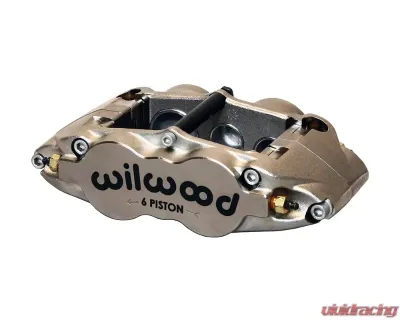

Wilwood 1.62 | 1.12 | 1.12" Pistons 1.25" Disc Caliper Forged Narrow Superlite 6R-RH Nickel

$443.93 Sale:$411.04

Wilwood

Model #120-11778-N


Shopper Award

The Forged Narrow Superlite 6R (FNSL6R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

The Forged Narrow Superlite 6R (FNSL6R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

The key to the superior performance of the FNSL6R comes from the extremely durable and efficient body design. Starting at 4.9 pounds it is the product of computer generated solid modeling and FEA stress analysis technology. The most noteworthy feature of this new caliper design is the forging. Each body is stress-flow forged from premium grade aluminum alloy billets. Stress-flow forging re-aligns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Simply stated, there is no better way to build a stronger aluminum caliper body.

A unique six-piston differential bore configuration provides balanced loading for even pad wear in sustained high heat environments. The standard FNSL6R calipers feature one-piece stainless steel pistons. Stainless is used for its slow heat transfer properties and high resistance to corrosion. Calipers can be upgraded with Wilwood's exclusive Thermlock pistons. This multi-part piston design creates a highly efficient thermal barrier to further reduce heat transfer from the pads to caliper body, seals, and fluid. Cooler temperatures translate to longer service life and less chance for heat induced pedal fade.

Features:

  • Piston Count: 6
  • Piston Area (in sq.): 4.04
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 1.25
  • Rotor Diameter(in): 14.00
  • Pad Area (in sq.): 8.2
  • Pad Volume (in cube): 3.8
  • Material: Aluminum
  • Weight(Lbs): 5.0
  • Color: Ano
  • Finish: Type III Ano
  • Mount Center(in): 5.98
  • Mount Side: Right Hand
  • Mount Type: Radial

Proposition 65

/!\ warningWARNING: Cancer and Reproductive Harm

https://www.P65Warnings.ca.gov

Who is Wilwood?

Willwood Engineering Inc. was formed back in 1977 by Bill Wood. The company is known for manufacturing a high-performance disc brake system.

Throughout the years, the company has continuously improved itself, along with the ever-changing advancement in-vehicle technology.

Today, the company had extended its wheel designs to supply brake components for various vehicles, including agricultural equipment, utility vehicles, motorcycles, four-wheelers, military vehicles, and even snowmobiles.

A Brake for Every Need

Wilwood has an extensive inventory of brakes parts for various vehicles. With over hundreds of brake calipers, master cylinder, and rotor designs, not to mention the tons of brackets, fitting, brake lines, and valves, it has the right kit for every vehicle application you can think of.

Engineered to Perfection

The company entails the most advanced technology and software in designing and manufacturing its products. They use a finite element analysis and multiple testing procedure such as a dynamic and cycle test that helps them replicate real-world conditions and adjust their design accordingly, making the necessary correction even before they manufacture the actual product

Using only the finest materials available, they can create a product that meets its clientele's expectation whether it's for street use or for race application.

Wilwood has also been ISO Certified, making it compliant to all mandated processing procedures set by the regulatory board.

Purchase Wilwood Products at Vivid Racing

Your brakes are the most important component of your car. It is easy to make your car fast, but you have to make sure you can equally make it stop as well.

Wilwood has the right product for you. With safety and quality at its core, they are the product you can surely trust. Visit Vivid Racing and check the list of parts that would fit your specific needs.
