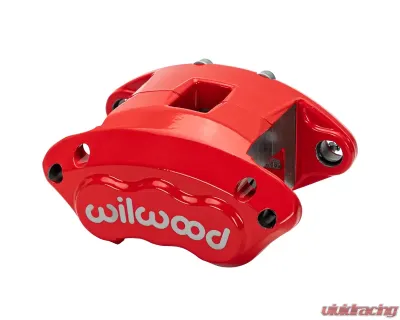

Wilwood 1.62" Pistons .38" Disc Caliper DPS-VW 2.22" mt Red

$226.47 Sale:$209.70

Wilwood

Model #120-16070-RD


Shopper Award

Wilwood's D154-DS forged billet caliper is a direct bolt-on, lightweight, high-strength, extreme duty alternative to the OE cast iron calipers that were used on a wide range of factory disc brake equipped mid-size GM cars and small trucks beginning in 1978. Use of this caliper can still be found on some GM models as late as the year 2002. D154-DS calipers incorporate an exclusive dust wiper seal that further protects the piston bore from dust and corrosion, allowing the caliper to be used in locales that mandate a method of environmental sealing. The wide spread and affordable availability of D154-DS calipers and brake pad compounds also made it a popular choice in a number of restricted class competition categories and drum to disc conversions on all types of hot rods and street machines.

A large 2.50" single piston stainless steel pistons are used to resist corrosion and retard heat transfer from the pads into the caliper body. High temperature, square faced bore seals are used to provide controlled piston retraction and reliable performance from the wider sealing face and also incorporate an additional an exclusive dust wiper seal that further protects the piston bore from dust and corrosion This combination of components is a proven performer with long service life and a history of reliable performance in any type of driving environment, including extreme sustained high temperature racing applications. The caliper slide pin holes are fitted with dampening rings to minimize noise from vibration. The caliper is also fitted with bleed screws on both ends to facilitate mounting in any left hand or right hand, front leading mount, or rear trailing mount locations.

Features:

  • Piston Count: 1
  • Piston Area (in sq.): 4.90
  • Piston Type: Stainless
  • Dust Boot: Yes
  • Rotor Width (in): 1.04
  • Rotor Diameter(in): 12.19
  • Pad Area (in sq.): 8.7
  • Pad Volume (in sq.): 2.9
  • Material: Aluminum
  • Weight(Lbs): 4.7
  • Color: Red
  • Finish: Red Powder Coat
  • Mount Center(in): 2.00
  • Mount Side: Universal
  • Mount Type: Floating
