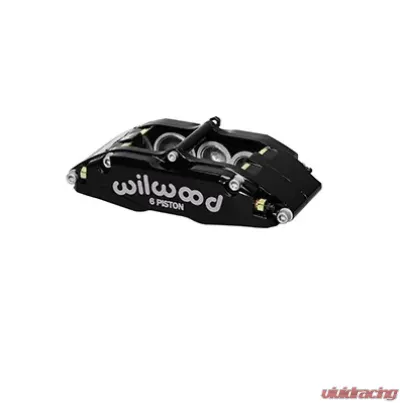

The 2nd generation of the Narrow SL6 series has been redesigned with Wilwood's latest technology. High strength Billet bodies with internal crossover passages allow the calipers to mount in either front or rear of spindle applications with same part number. With Same 3. 50" centered lug mounting of original Narrow Superlite caliper. Each caliper is precision CNC machined from high strength Billet Forging with a re-profiled outer body that enhances wheel clearance and appearance. Calipers are available in Black, Red powder coat and a show quality polished finish to compliment any application.
The key to the superior performance of the BNSL6 comes from the extremely durable, efficient and lightweight body design. Starting at 5. 2, pounds it is the product of computer generated solid modeling and FEA stress analysis technology. Full length stiffening ribs and a reinforced radial transition from the piston bore housings to the closed end bridges have produced the strongest Superlite caliper bodies ever built. When compared to open bridge calipers that use tube or stand spacers between the body halves, the closed end bridge design is measurably stronger with less separation or deflection under load. Additional strength and resistance to deflection comes from the four high-strength steel end bridge bolts. A fifth center bridge bolt provides even more overall strength and easy access to the pads without the need to remove the caliper from the mount.
A unique six-piston differential bore configuration provides balanced loading for even pad wear in sustained high heat environments. The standard SL6 calipers feature one-piece stainless steel pistons. Stainless is used for its slow heat transfer properties and high resistance to corrosion. In addition, each SL6 is equipped with SRS bridge plates. SRS plates eliminate all bridge wear caused by pad gouging and extend the service life of the caliper. The spring-loaded action of the SRS plates also eliminates pad rattle and dampens the harmonic vibrations that contribute to pad squeal. Two piece bleed screws are recess mounted to shield them from track debris and other potential damage sources. High temperature, square faced bore seals provide the largest possible sealing area and controlled piston retraction on release. The full range of Wilwood pad compounds is available to match the brake response and heat range of any competition or sports driving application.
Features:
The key to the superior performance of the BNSL6 comes from the extremely durable, efficient and lightweight body design. Starting at 5. 2, pounds it is the product of computer generated solid modeling and FEA stress analysis technology. Full length stiffening ribs and a reinforced radial transition from the piston bore housings to the closed end bridges have produced the strongest Superlite caliper bodies ever built. When compared to open bridge calipers that use tube or stand spacers between the body halves, the closed end bridge design is measurably stronger with less separation or deflection under load. Additional strength and resistance to deflection comes from the four high-strength steel end bridge bolts. A fifth center bridge bolt provides even more overall strength and easy access to the pads without the need to remove the caliper from the mount.
A unique six-piston differential bore configuration provides balanced loading for even pad wear in sustained high heat environments. The standard SL6 calipers feature one-piece stainless steel pistons. Stainless is used for its slow heat transfer properties and high resistance to corrosion. In addition, each SL6 is equipped with SRS bridge plates. SRS plates eliminate all bridge wear caused by pad gouging and extend the service life of the caliper. The spring-loaded action of the SRS plates also eliminates pad rattle and dampens the harmonic vibrations that contribute to pad squeal. Two piece bleed screws are recess mounted to shield them from track debris and other potential damage sources. High temperature, square faced bore seals provide the largest possible sealing area and controlled piston retraction on release. The full range of Wilwood pad compounds is available to match the brake response and heat range of any competition or sports driving application.
Features:
- Caliper Type: 6 Piston
- 1. 62/1. 12/1. 12" Pistons, 1. 10" Disc
- Rotor Diameter: 14"
- 8. 2" Pad Area
- Stainless Piston Type
- Black
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Willwood Engineering Inc. was formed back in 1977 by Bill Wood. The company is known for manufacturing a high-performance disc brake system.
Throughout the years, the company has continuously improved itself, along with the ever-changing advancement in-vehicle technology.
Today, the company had extended its wheel designs to supply brake components for various vehicles, including agricultural equipment, utility vehicles, motorcycles, four-wheelers, military vehicles, and even snowmobiles.
A Brake for Every NeedWilwood has an extensive inventory of brakes parts for various vehicles. With over hundreds of brake calipers, master cylinder, and rotor designs, not to mention the tons of brackets, fitting, brake lines, and valves, it has the right kit for every vehicle application you can think of.
Engineered to PerfectionThe company entails the most advanced technology and software in designing and manufacturing its products. They use a finite element analysis and multiple testing procedure such as a dynamic and cycle test that helps them replicate real-world conditions and adjust their design accordingly, making the necessary correction even before they manufacture the actual product
Using only the finest materials available, they can create a product that meets its clientele's expectation whether it's for street use or for race application.
Wilwood has also been ISO Certified, making it compliant to all mandated processing procedures set by the regulatory board.
Purchase Wilwood Products at Vivid RacingYour brakes are the most important component of your car. It is easy to make your car fast, but you have to make sure you can equally make it stop as well.
Wilwood has the right product for you. With safety and quality at its core, they are the product you can surely trust. Visit Vivid Racing and check the list of parts that would fit your specific needs.
