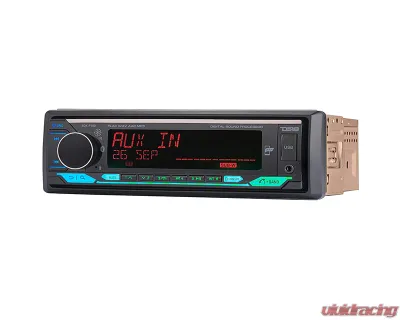

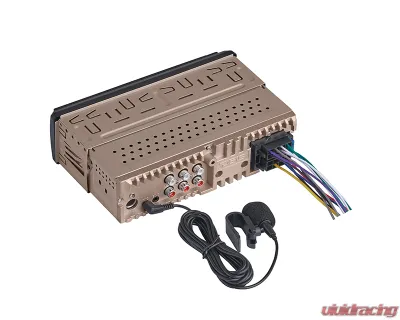

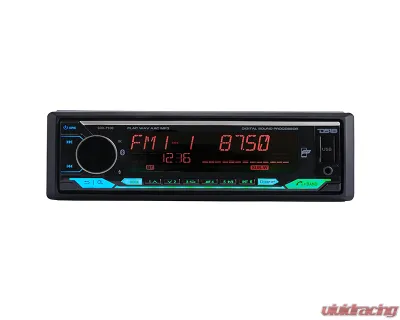

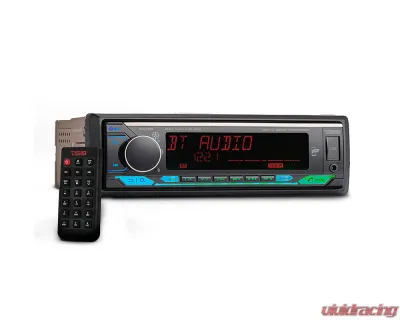

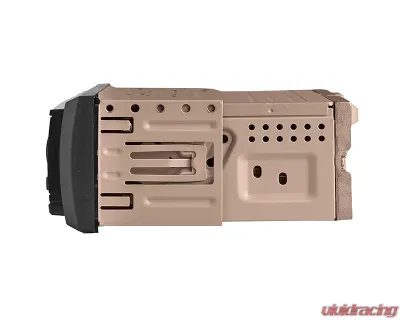

DS18 Aux Input USB Mechless AM/FM Radio Receiver 3V + 3.5V Subwoofer Digital Media Receiver Single Din DSP APP Bluetooth Audio and Calling Head Unit - SDX-P100
DS18 Aux Input USB Mechless AM/FM Radio Receiver 3V + 3.5V Subwoofer Digital Media Receiver Single Din DSP APP Bluetooth Audio and Calling Head Unit - SDX-P100 - Image 6 DS18 Aux Input USB Mechless AM/FM Radio Receiver 3V + 3.5V Subwoofer Digital Media Receiver Single Din DSP APP Bluetooth Audio and Calling Head Unit - SDX-P100 - Image 2 DS18 Aux Input USB Mechless AM/FM Radio Receiver 3V + 3.5V Subwoofer Digital Media Receiver Single Din DSP APP Bluetooth Audio and Calling Head Unit - SDX-P100 - Image 3 DS18 Aux Input USB Mechless AM/FM Radio Receiver 3V + 3.5V Subwoofer Digital Media Receiver Single Din DSP APP Bluetooth Audio and Calling Head Unit - SDX-P100 - Image 4 DS18 Aux Input USB Mechless AM/FM Radio Receiver 3V + 3.5V Subwoofer Digital Media Receiver Single Din DSP APP Bluetooth Audio and Calling Head Unit - SDX-P100 - Image 5 DS18 Aux Input USB Mechless AM/FM Radio Receiver 3V + 3.5V Subwoofer Digital Media Receiver Single Din DSP APP Bluetooth Audio and Calling Head Unit - SDX-P100 - Image 6
Upgrade your sound system with DS18's SDX-P100 for the ultimate in-car audio experience. This mech-less media receiver gives you full control over your audio. Enhancing its versatility, the SDX-P100 features 3.5V RCA outputs, providing seamless connectivity options for an even more dynamic audio setup. The single DIN in-dash mounting ensures a seamless fit into your vehicle's console, making installation a breeze. Tune in to your favorite radio stations with the AM/FM radio function, offering 30 memory stations for easy access to your go-to channels. Plus, the USB reader allows you to play media files directly from a USB drive, supporting formats like FLAC, WAV, AAC, APE, and MP3. Stream music wirelessly via Bluetooth and enjoy hands-free calling for added convenience and safety. The 4" LCD display delivers crystal-clear visuals, while the dynamic multi-color LED backlight adds a touch of personalization to your dashboard. With 3-zone RGB illumination, you can choose from a wide range of colors to match your mood or interior. With a maximum power output of 40W x 4 and a continuous power output of 13W x 4, rich and immersive sound quality is guaranteed. The built-in DSP (Digital Signal Processor) with time alignment and 2/3 way crossover allows you to fine-tune your audio settings for optimal listening pleasure. Take control with the 24-band graphic equalizer and adjust volume, subwoofer level, balance, and fader settings to create the perfect soundstage. Stay connected on the go with DS18's SDX App! This lets you control your receiver, processing, and other features included in the SDX-P200 using your smartphone. The wireless remote also allows complete control without the need for steering wheel control interfaces. Designed to meet the highest standards of quality, DS18's SDX-P100 is built to last. Order yours today and experience the DS18 Difference.

Features :
  • Digital Media Single Din Receiver
  • Mech-Less ~ Remote Control APP
  • BT ~ USB ~ AUX
  • DSP ~ EQ ~ AM/FM
  • SUB Output ~ SWC Output
  • Multi Color Illumination~ 4" Display
Specifications :
  • Nominal DIN Size : 1-DIN
  • Rated Power Voltage : 14.4V
  • Voltage Operation : 9.6-15 Volts
  • Maximum Current Consumption : 15A
  • Temperature Operation : 0~60°C / 32~140°F
  • Screen Size : 4" / 104mm
  • Display Type : LCD Dots
  • Buttons / Controls : ABS
  • Backlight Illumination Type : RGB / 3 Zones
  • Body Material / Color / Finish : Steel / Bronze
  • Audio Specifications
    • Maximum Power Output (Peak) : 4x40W
    • Continuous Power Output (RMS) : 4x15W
    • Minimum Impedance : 4 Ohms
    • Frequency Response : 20Hz-20KHz
    • Pre-Output Level (RCA) : 3V / 3.5V (Subwoofer)
    • Equalizer Bands : 24 Bands
    • Equalizer Gain : + / - 9dB
    • Crossover : 3-Way
    • Crossover Slope : 6 / 12 / 24 dB/Oct
    • Time Alignment : 0~25ms / 0~850cm
    • Audio Control : Subwoofer Level, Fader, Balance, Loudness
  • Tuner & BT Specifications
    • Frequency Range (FM) : 87.5 - 108.0 MHz
    • Frequency Range (AM) : 522 - 1620 KHz
    • Presets Memory : 18 FM / 12 AM
    • Region : Europe, America, Asia, Russia
    • Sensitivity Adjustment : Local / DX
    • Version : 4.2
    • Services : Hands Free Calls, Audio Streaming, APP Remote Control
    • Audio Protocols : A2DP, AVRCP, HFP
    • Range : 32ft / 10m
  • USB / SD Player Specifications
    • Type / Class : 2.0, 3.0 / FAT 16, FAT32
    • Format Files Supported : FLAC (16 Bit), WAV, AAC, APE, MP3
    • Max Memory Size Reader : 64 Gb
    • Max Current USB Charger : 1A
    • Number of Ports : 1 (Front)
  • Connectivity Specifications
    • A/V Aux Input : Yes, Front 3.5mm Jack (2V Max)
    • Microphone : Yes, Built-In / External Mic Input
    • Remote Control (SWC) : Yes, 3.5mm Jack Input
    • Remote Control (Handset) : Yes, Card Type with Rubber Buttons
    • APP Control : Yes, (Android Devices)
  • Measurements
    • Overall Width (Chassis) : 7" / 178mm
    • Overall Height (Chassis) : 1.96" / 50mm
    • Overall Depth (Chassis) : 4" / 104mm
    • Overall Width (Bezel Frame) : 7.4" / 188mm
    • Overall Height (Bezel Frame) : 2.2" / 58mm
    • Overall Depth (Bezel Frame) : 0.98" / 25mm
