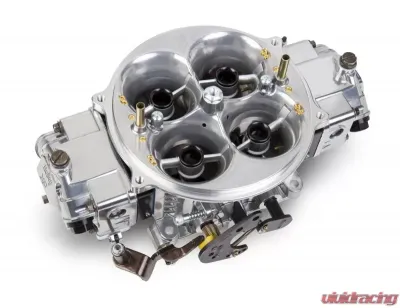

Holley 4500 1475 CFM 3 CIR - BLACK

The original Dominator® took carburetion to new heights back in 1969, designed specifically for the adrenaline-pumping world of NASCAR® racing. Fast forward to today, and we’re excited to introduce the Gen 3 Ultra Dominator, which represents the most significant evolution yet! With a fresh main body design, cutting-edge calibrations, and high-volume fuel bowls, this beauty boasts sizes up to 1475 CFM!

What’s new? The patent-pending GEN 3 main body is now 5/16" taller than its predecessor! This extra height allows for larger radius air entries, optimized using advanced Computational Fluid Dynamics (CFD) software to ensure a smooth flow into the newly machined, big bore venturi.

But that’s not all! The main body comes equipped with an integrated idle bypass valve, letting you make idle adjustments while keeping the throttle plate and transfer slot relationship just right. Plus, the extended air cleaner flange makes attaching an air scoop a breeze when you use the available air scoop adapter.

The Gen 3 is designed with high-capacity fuel bowls that hold 20% more fuel to prevent starvation. It also features an integrated fuel shelf to reduce aeration and internal baffling to manage fuel slosh effectively. You’ll appreciate the all-aluminum construction, 12-hole billet booster inserts, fully tunable billet metering blocks, adjustable external linkage, throttle position sensor mounting points, and knurled (hand adjustable) curb idle screws.

Every calibration has been rigorously dyno and track tested to ensure it delivers reliable performance!

Important Downloads:

• Instructions for Part# 0-80910BK
• Carburetor Numerical Listing for Part #0-80910BK

Features:

• All aluminum construction saves 3.8 lbs compared to original models (28% lighter!)
• Stylish black anodized billet aluminum metering block and booster inserts
• Perfect for drag racing, pro street, or any high horsepower engines
• Calibrations tailored for today’s larger race engines and modern fuels
• Fully machined from venturi throat to throttle bore for consistent performance
• Integrated idle bypass valve for easy idle adjustments
• 12-hole billet booster inserts for exceptional atomization and quick throttle response
• New modified skirt boosters maintain a strong fuel signal on high CFM carbs
• Durable metering blocks with true gasket sealing and full adjustability
• Dual 50cc accelerator pumps deliver the right fuel from idle to full throttle
• Fuel bowls hold 20% more fuel and feature internal baffling to control slosh
• Clear sight windows on both sides of bowls for safe and easy fuel level checks
• Convenient drain plug located at the front center of the bowl for easy access
• -8 (o-ringed) inlet threads allow for various plumbing options from either side
• Factory-ready TPS mounting points for data acquisition systems (Holley TPS P/N 534-214 available)
• Knurled (hand adjustable) primary and secondary curb idle screws for tool-free adjustments
• Contoured hex head squirter screws for streamlined airflow
• 100% wet-flow tested by Holley technicians to ensure it’s ready to run!
• Fully adjustable stainless steel external linkage for customizable throttle activation

Specifications:

• Barrels: 4
• Billet Color: Shiny with Black Billet
• Booster: Annular Billet Insert
• CFM: 1475
• Choke: None
• Circuit: 3
• Emission Code: 4
• Finish: Shiny
• Fuel: Gasoline
• Fuel Inlet: Dual
• High Speed Air Bleed: 34
• Idle Air Bleed Size: 51
• Intermediate Air Bleed: 70
• Material: Aluminum
• Model: 4500
• Needle and Seat Size: 130;130
• Primary Main Jet: 98
• Primary Power Valve: 5.5
• Primary Pump Nozzle Size: 42
• Product Type: Carburetor
• Secondaries: Mechanical
• Secondary Main Jet: 108
• Secondary Pump Nozzle Size: 42
• Supercharged Application: No
• Throttle Bore: 2.350 inch
• Venturi Size: 2.105 inch
• Warranty: Limited 90 Day

Notes:

• New or modified fuel lines are necessary if you’re replacing an existing Holley Dominator 4500 series carburetor. The previous bowl machining was 7/8-20, while the Aluminum Ultra Dominator carburetors come assembled with -6AN to SAE 8 port fittings. The center-to-center fuel inlet measurement is now 11.5".
