Description:

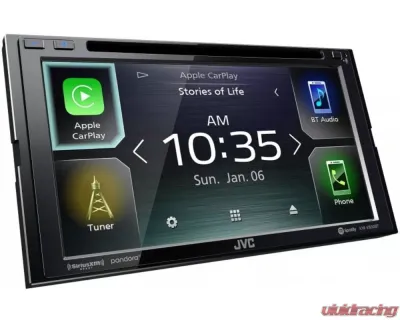

Multimedia Receiver featuring 6.8" Clear Resistive Touch Monitor / Apple CarPlay / Android Auto / High-Resolution Audio / iDatalink Maestro Ready / Bluetooth? / 13-Band EQ

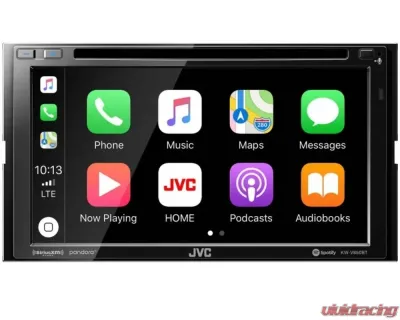

Apple CarPlay - Connect via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps? and Waze? are supported

Android Auto - Connect via USB

Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it?s designed to minimize distraction so that you can stay focused on the road. With the latest ANDROID OS version (PIE and higher), Google Maps? and Waze? are also supported.

Sound Optimization

From advanced technologies that enable playback of premium High-Resolution Audio sources, to the vast array of sound adjustment functions to fine-tune and customize the acoustics exactly the way you want.

High-Resolution Audio Playback

You can enjoy playback of 96kHz/24bit audio which contains about 3 times the musical information of music CDs (44.1kHz/16bit), or even 192kHz/24bit High-Resolution Audio files with their approx. 6.5 times data volume. With high sound quality approaching the original master recording itself, you will experience the presence and ambience of a tune the way CD simply cannot.

K2 Technology for Enhanced Digital Sound Quality

K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192 kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting.

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

Sound Response

Cancels time distortion to create clearer sound during the playback of compressed audio files.

Space Enhancement

Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the receiver automatically adjusts the sound effectively.

Sound Lift

Virtually manipulate the height of the speakers by adjusting the sound frequencies.

Volume Link EQ

Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

2 Phones Full-Time Connection

You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.

iPhone?/Android? Bluetooth Automatic Pairing

Just connect your iPhone or Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.

Bluetooth Voice Recognition

Improved Sound Quality with HFP 1.7 Wideband Speech Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.

Bluetooth AVRCP1.6 for Versatile Song Selection

In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.

JVC Streaming DJ

Connect up to 5 Bluetooth devices simultaneously, so you and your friends can take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.

Pandora / Spotify Control(Android/iPhone)

Listen to Pandora and Spotify* from your smartphone with smooth control on the headunit via USB or Bluetooth connection for iPhone, and via Bluetooth for Android devices.

SiriusXM Ready

Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.

2-Camera Inputs

Enable users to add a rear facing camera and additional front facing camera.

Live Wallpaper

Synchronize background visual and color with music.

Clear Resistive Touch Panel Display

The clear resistive touch panel with high transparency and high luminance provides bright images with vivid colors.

Gesture Touch Control

Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.

iDatalink Maestro -Advanced Vehicle Integration

iDatalink Maestro RR (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles.

Remote Control App

Control the music directly from the smartphone using simple finger gestures with "JVC Remote S" app* now available for both iOS and Android.

High Current 1.5A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.*Compatibility depends on the smartphone.

Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

4.0V High-Voltage 3 Pre-Outs

Equipped with three RCA terminals for pre-outs with 4.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.

Remote Control (Optional)

Remote control (RM-RK258) is optionally available.

Technical Specifications:

• Monitor
  • Screen Size: 6.8" Wide VGA
  • Touch Panel: Clear Resistive
  • Gesture Touch Control: Yes
  • Customizable GUI: Yes
  • Key Illumination Color: Blue
  • Dimmer: Yes
  • Multilingual Display: Yes[4]
  • Wallpaper Capture: Yes
  • Live Wallpaper: Yes
• Media Playback
  • MP3 Compatible with Tag: CD / DVD / USB
  • WMA Compatible with Tag: CD / DVD / USB
  • WAV Compatible with Tag: CD / DVD / USB
  • AAC Compatible with Tag: CD / DVD / USB
  • FLAC Compatible with Tag: CD / DVD / USB( Up to192kHz/24bit )
  • H.264 Compatible: CD / DVD / USB
  • WMV Compatible: CD / DVD / USB
  • MPEG 1/2 Compatible: CD / DVD / USB
  • MPEG 4 Compatible: CD / DVD / USB
  • AVI/MKV Compatible: CD / DVD / USB
  • JPEG File Playback: CD / DVD / USB
  • PNG File Playback: CD / DVD / USB
  • BMP File Playback: CD / DVD / USB
• CD Player
  • CD-R/RW Compatible: Yes
• DVD Player
  • DVD-R/-RW, +R/+RW Compatible: Yes
  • Video CD Playback: Yes
• Bluetooth Control
  • Built-in Bluetooth[1]: Yes (Version 4.1, Wired-Mic included)
  • Hands Free Call: Yes (HFP1.7 Wideband Speech)
  • 2 Phones Full-Time Connection: Yes
  • Audio Streaming & Control (A2DP, AVRCP): Yes
  • 5 BT-Audio Connection: Yes
  • Voice Dialing (voice recognition compatible mobile phone required): Yes
  • Phone Book Access Profile (PBAP): Yes
  • Alphabetical Search for Phone Book: Yes
  • Auto Pairing for iPhone/Android: Yes
• Android Control
  • Android Auto[2]: Yes (via USB)
  • Android Music Playback: Yes (via Bluetooth(R))
  • Pandora Control: Yes (via Bluetooth(R))
  • Spotify Control: Yes (via Bluetooth(R))
• iPod/iPhone Control
  • CarPlay[3]: Yes (via USB)
  • iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))
  • Pandora Control: Yes (via USB or Bluetooth(R))
  • Spotify Control: Yes (via USB or Bluetooth(R))
• USB
  • USB Port: x1 (High Speed)
  • Position: Rear
  • USB Power Supply: Yes (1.5A High Current Charging)
  • Drive Change Mode for Mass Storage Class (selectable from internal/external memory): Yes
• Radio Tuner
  • SiriusXM Ready: Yes
  • Radio Broadcast Data System (RBDS): Yes
  • Preset Stations: 20(FM:15ch, AM:5ch)
  • Auto Memory Entry: Yes
  • FM: Frequency Range: 87.9-107.9MHz
  • AM: Frequency Range: 530-1,700kHz
• Audio
  • Maximum Power Output (Front & Rear): 50Wx4
  • Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
  • EQ: Yes (13-Band Graphic EQ)
  • Preset EQ: Yes (8Preset + 4user)
  • Bass Boost: Yes
  • High-Pass Filter/Low-Pass Filter: Yes/Yes
  • 3-Way X'over: Yes
  • High-Resolution Audio: Yes
  • K2 Technology: Yes
  • Space Enhancement: Yes
  • Sound Response: Yes
  • Sound Lift: Yes
  • Volume Link EQ: Yes
  • Time Alignment: Yes
  • Dual-Zone Function: Yes

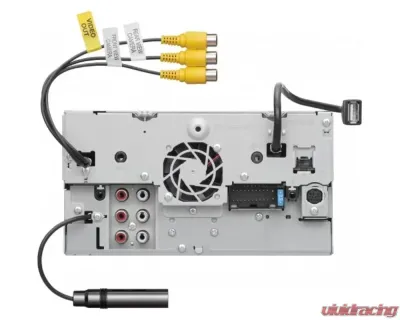

• Inputs and Outputs
  • AV Input: mini jack
  • Video Out: RCA
  • Rear view camera Input: Yes
  • Front view camera Input: Yes
  • Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
  • Pre-output Level/Impedance: 4.0V / 10k ohms
  • Subwoofer Output with Level/Frequency Control: Yes
• General
  • iDatalink Maestro Ready: Yes
  • Remote Control Application: Yes
  • Back Up Memory: Yes
  • Face Type: Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree) 4 steps
  • Wireless Remote Control: Ready (RM-RK258 required)
  • Steering Remote Control Ready: Yes
  • Dimensions (W x H x D)
    • Installation Size: 7" x 3-15/16" x 6-2/16" (178 x 100 x 155 mm)
    • Weight: 4.63 lbs. (2.1kg)
    • Unit weight in individual package: 6.17 lbs. (2.8kg)
